PP-CSB

SPECS

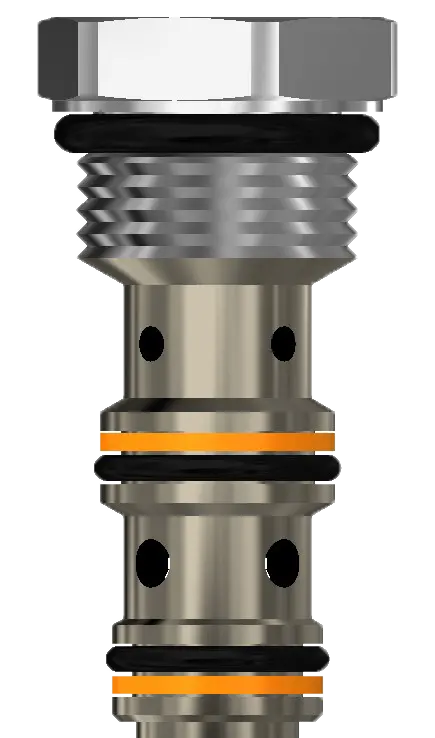

The PP-CSB allows flow from the higher pressure of (1) or (3) to (2). The valve is commonly used as a load sense to direct oil from the pressure side of a bidirectional hydraulic motor to a pressure released hydraulic brake.
GPM
PSI
LPM
BAR
SIZE
6
3500
23
241
3∕4-16

SCHEMATIC

Schematic

PDF DOWNLOAD

3D FILE DOWNLOAD

ADDITIONAL INFO

Notes

Hardened parts for long life. Industry common cavity.
